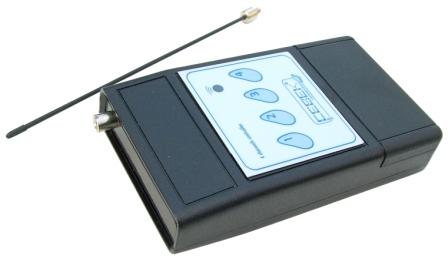

Cebek 4-Channel High Power RF Transmitter



Cebek 4-Channel High Power RF Transmitter

Specifications:
Reference TL-20
Group 2
Carrier Frequency 433.92 MHz
Number of Channels 4
Range 100m
Consumption 13mA
Power Supply 12VDC 23A Battery
Dimensions 106 x 61 x 24mm
Weight 112g
Technical Information > Download the Handbook for full specifications and applications
The Cebek TL-20 is a four channel high power transmitter for Cebek RF remote control receivers. Through the Certified radio frequency signal of 433.92 MHz. the transmitter will emit a coded signal to the receivers, allowing it to switch off or on the receivers relay. To personalise remote controls you have more than 13,122 combinations, the required code is easily selected thanks to the DIL switch fitted inside each remote control. All transmitter modules are supplied in an hand held enclosure with battery and antenna
Will Operate with the following Receivers
Four Channel (12Vdc) Momentary Action TL-22
Four Channel (12Vdc) Latching Action TL-23
Relay Extension Board (Latching Action) TL-24
Relay Extension Board (Momentary Action) TL-25
Single Channel (12Vdc) Latching/Momentary TL-26
Two Channel (12Vdc) Latching/Momentary TL-27
Re-Transmission Booster TL-99

Related Products::
Battery 23A

Order Code   Each
TL-20 Cebek 4-Channel High Power RF Transmitter 36.91
