Cebek Opto Coupled 230v Interface with two DPDT Relays


Opto-Coupled 230v Interface with two DPDT Relays
Specifications:
Reference T-45
Input 3 - 24VDC (Minimum 5mA)
Relay Output (2) DPDT 3A
Consumption 3 Watts
Power Supply 230VAC
Dimensions 98 x 72 x 30mm
Weight 112g
Technical Information > Download the Handbook for full specifications and applications

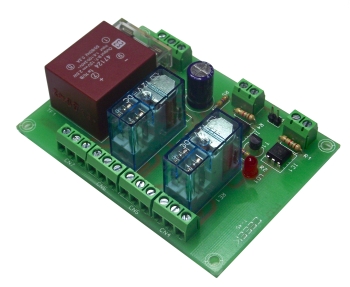

The Cebek T-45 is a an opto coupled interface which has two independent a single pole double throw relays. The module is powered from a 230 volt supply and the relays are energised when a separate voltage of between 3 and 24 volts are applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::



Order Code   Each
T-45 Cebek Opto-Coupled 230v Module with twin DPDT Relays 32.85
