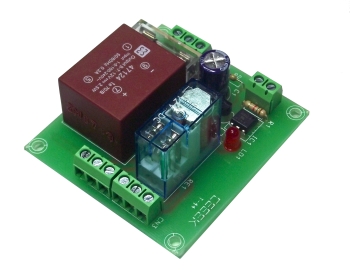

Cebek Opto Coupled 230v Interface with a DPDT Relay


Opto-Coupled 230v Interface with a DPDT Relay
Specifications:
Reference T-44
Input 3 - 24VDC (Minimum 5mA)
Relay Output DPDT 3A
Consumption 3 Watts
Power Supply 230VAC
Dimensions 64 x 72 x 30mm
Weight 78g
Technical Information > Download the Handbook for full specifications and applications
The Cebek T-44 is a an opto coupled interface with a single pole double throw relay output. The module is powered from a 230 volt supply and the relay is energised when a separate voltage of between 3 and 24 volts is applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::




Order Code   Each
T-44 Cebek Opto-Coupled 230v Module with DPDT Relay Output 24.76
