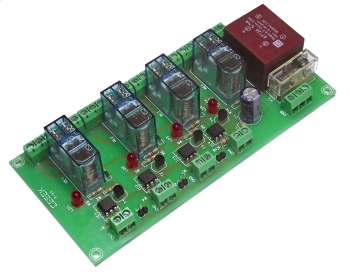

Cebek Opto Coupled Mains Interface with four DPDT Relays


Opto-Coupled 230v Interface with four DPDT Relays
Specifications:
Reference T-41
Input 3 - 24VDC (Minimum 5mA)
Relay Output (4) DPDT 3A
Consumption 3 Watts
Power Supply 230VAC
Dimensions 154 x 72 x 30mm
Weight 175g
Technical Information > Download the Handbook for full specifications and applications
The Cebek T-1 is a an opto coupled interface which has four independent a double pole double throw relays. The module is powered from a 12 volt supply and the relays are energised when a separate voltage of between 3 and 24 volts are applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::



Order Code   Each
T-41 Cebek Opto-Coupled Mains Powered Module with 4 DPDT Relays 43.85
