Cebek Opto-Coupled 24v Interface with two DPDT Relays



Opto-Coupled 24v Interface with two DPDT Relays

Specifications:
Reference T-35
Input 3 - 24VDC (Minimum 5mA)
Relay Output (2) DPDT 3A
Consumption 60mA
Power Supply 24VDC
Dimensions 64 x 72 x 30mm
Weight 70g
Technical Information > Download the Handbook for full specifications and applications

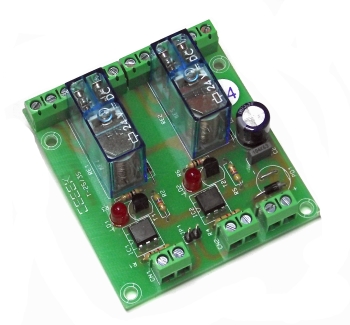

The Cebek T-35 is a 24 volt DC opto-coupled interface with two independent DPDT 3 Amp relays. When a  DC voltage of between 3 and 24 is applied to the input the corresponding relay will be energised. It allows for easy connection to any low voltage, low current device. An LED gives visual indication when the relay is energised.

Related Products::
Power Supply FE-7


Order Code   Each
T-35 Cebek Opto-Coupled 24v Module with twin DPDT Relays 20.19
