Cebek Opto-Coupled 24v Interface with a DPDT Relay



Opto-Coupled 24v Interface with a DPDT Relay

Specifications:
Reference T-34
Input 3 - 24VDC (Minimum 5mA)
Relay Output DPDT 3A
Consumption 30mA
Power Supply 24VDC
Dimensions 53 x 72 x 30mm
Weight 41g
Technical Information > Download the Handbook for full specifications and applications

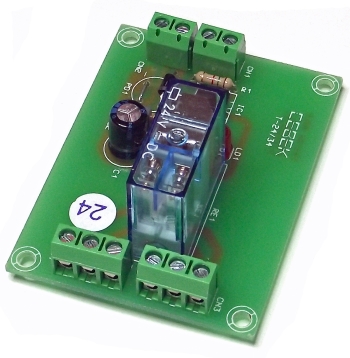

The Cebek T-34 is a 24v DC powered opto-coupled interface with a double pole double throw relay output. When an voltage of between 3 and 24 is applied to the input the relay will be energised. It allows for easy interface between CMOS, TTL or any low voltage, low power source. An LED gives visual indication of the relay.

Related Products::
Power Supply FE-7



Order Code   Each
T-34 Cebek Opto-Coupled 24v Module with DPDT Relay Output 12.43
