Cebek Opto Coupled 12v Interface with two DPDT Relays


Opto-Coupled 12v Interface with two DPDT Relays
Specifications:
Reference T-25
Input 3 - 24VDC (Minimum 5mA)
Relay Output (2) DPDT 3A
Consumption 110mA
Power Supply 12VDC
Dimensions 64 x 72 x 30mm
Weight 70g
Technical Information > Download the Handbook for full specifications and applications

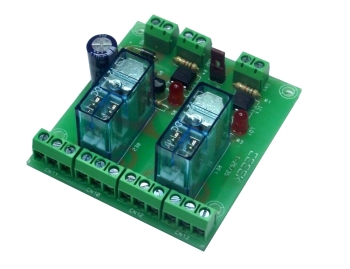

The Cebek T-25 is a an opto coupled interface which has two independent a double pole double throw relays. The module is powered from a 12 volt supply and the relays are energised when a separate voltage of between 3 and 24 volts are applied to the input terminals. This allows for easy interface between CMOS, TTL or any low voltage low current source. An LED gives visual indication of the relay operation. These small PCB are ideal to interface with burglar alarms, fire detection systems and entry exit access systems.

Related Products::
Power Supply FE-2


Order Code   Each
T-25 Cebek Opto-Coupled 12v Module with twin DPDT Relays 18.25
