Cebek Opto-Coupled 12v Interface with four DPDT Relays


Opto-Coupled 12v Interface with four DPDT Relays
Specifications:
Reference T-21
Input 3 - 24VDC (Minimum 5mA)
Relay Output (4) DPDT 3A
Consumption 200mA
Power Supply 12VDC
Dimensions 132 x 72 x 30mm
Weight 138g
Technical Information > Download the Handbook for full specifications and applications

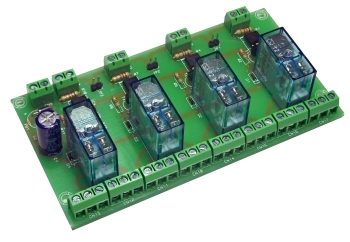

The Cebek T-21 is a 12 volt DC opto-coupled interface with four independent DPDT 3 Amp relays. When a  DC voltage of between 3 - 24 is applied to the input, the corresponding relay will be energised. It allows for easy connection to any low voltage, low current device. An LED gives visual indication when the relay is energised.

Related Products::
Power Supply FE-2


Order Code   Each
T-21 Cebek Opto-Coupled 12v Module with 4 DPDT Relays 36.43
