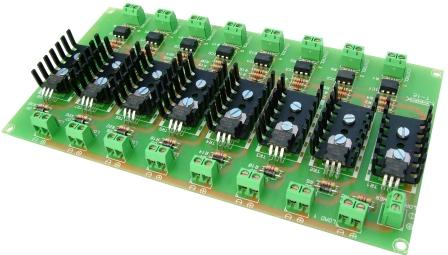

Cebek Opto-Coupled Module with 8 Transistors


Cebek Opto-Coupled Module with 8 Transistors
Specifications:
Reference T-12
Input 3 - 24VDC
Transistors Output (8) 2A@45VDC
Consumption 40mA
Power Supply 12VDC
Dimensions 107 x 200 x 20mm
Weight 226g
Technical Information > Download the Handbook for full specifications and applications
The Cebek T-12 is a an opto-coupled eight output interface with eight Mosfet transistors. When an voltage of between 3 and 24 is applied to the input the corresponding transistor will conduct. It allows for easy interface between CMOS and TTL signals. An LED gives visual indication of the output. All outputs have a common negative rail.

Related Products::
Power Supply FE-2



Order Code   Each
T-12 Cebek Opto-Coupled Module with 8 Transistors 53.98
