Cebek Speed Controller for 18-24VDC Motors



Cebek Speed Controller for 18-24VDC Motors

Specifications:
Reference R-6
Output Transistor
Operating Frequency 100 - 140 Hz
Maximum Load 6A
Power Supply 18 - 24VDC
Dimensions 68 x 65 x 45mm
Weight 114g
Technical Information > Download the Handbook for full specifications and applications

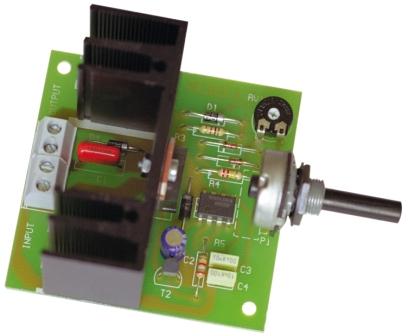

Cebek R-6 module is a speed controller for DC motors. It will control electric motors from 18 to 24VDC with a maximum consumption of 6A The speed is controlled due to the variation of the duty cycle. (PWM). The R-6 module is also fitted with a minimum speed potentiometer mounted on PCB.

Related Products::




Order Code   Each
R-6 Cebek Speed Controller for 18-24VDC Motors 21.81
