Cebek Mono Tone Control Pre-Amp



Cebek Mono Tone Control Pre-Amp

Specifications:
Reference PM-5
Frequency Response 10 - 40000Hz
Low Control 22db@Hz
High Control 22db@kHz
Input 100mV@100kΩ
Output 2V@1kΩ
Consumption 12mA
Power Supply 9 - 24VDC
Dimensions 80 x 75 x 20mm
Weight 54g
Technical Information > Download the Handbook for full specifications and applications

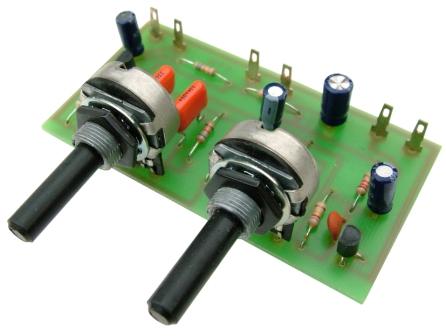

Cebek PM-5 module is a mono pre-amplifier for tonality control. It could independently adjust high and bass from a mono signal. Adjustment is made by a Bandaxall correction circuit. Potentiometers inserted in the printed circuit board (PCB) to avoid to wire them.

Related Products::
Power Supply FE-2



Order Code   Each
PM-5 Cebek Mono Tone Control Pre-Amp 9.42
