  Cebek Electronic Kits

Cebek General Purpose Mono Pre-Amp


Cebek General Purpose Mono Pre-Amp
Specifications:
Reference PM-4
Frequency Response 30 - 17000Hz
THD 0.05%
SNR 80db
Input 5 - 300mV@10kΩ
Output 2V@1kΩ
Consumption 10mA
Power Supply 6 - 18VDC
Dimensions 50 x 35 x 20mm
Weight 26g
Technical Information > Download the Handbook for full specifications and applications

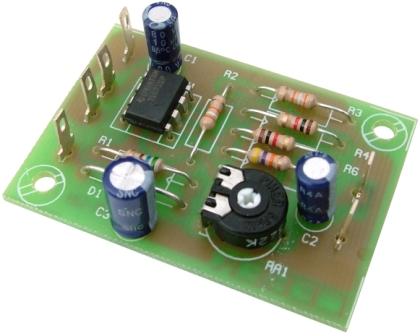

Cebek PM-4 circuit is a mono pre-amplifier for general purpose use. Specially suited for applications requiring a high
quality and small space. It includes a potentiometer for the gain adjustment as well as a protection against polarity inversion

Related Products::
Power Supply FE-2



Order Code   Each
PM-4 Cebek General Purpose Mono Pre-Amp 7.44
