Cebek Electret Microphone Pre-Amp



Cebek Electret Microphone Pre-Amp

Specifications:
Reference PM-3
Frequency Response 30 - 17000Hz
THD 0.05%
SNR 80db
Input Electret Microphone
Output 2V@1kΩ
Consumption 10mA
Power Supply 6 - 18VDC
Dimensions 52 x 38 x 15mm
Weight g
Technical Information > Download the Handbook for full specifications and applications

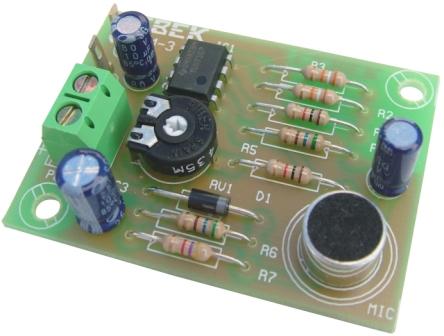

Cebek PM-3 is a mono pre-amplifier module witch incorporated a low impedance microphone. Specially recommended for applications requiring a high quality sound with a small space. It includes potentiometer to adjust the Gain as well as protection against polarity inversion.

Related Products::
Power Supply FE-2



Order Code   Each
PM-3 Cebek Electret Microphone Pre-Amp 6.91
