Cebek VOX Control with Electret Microphone



Cebek VOX Control with Electret Microphone

Specifications:
Reference PM-14
Frequency Response 30 - 17000Hz
Input 50mV@10kΩ
Output NCNO 5A Max
Consumption 55mA
Power Supply 12VDC
Dimensions 77 x 43 x 30mm
Weight 56g
Technical Information > Download the Handbook for full specifications and applications

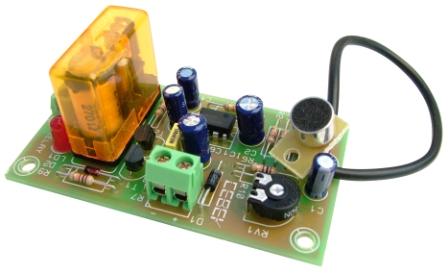

The Cebek PM-14 module is a switch activated by sound, which incorporates an electret microphone. When the module receives a signal, the relay will operate. It includes adjustment potentiometer, indicator Led, microphone and connection terminals

Related Products::
Power Supply FE-2



Order Code   Each
PM-14 Cebek VOX Control with Electret Microphone 12.31
