Cebek Multiplexed Transmitter for I-96 and I-97



Cebek Multiplexed Transmitter for I-96 and I-97

Specifications:
Reference I-95

Maximum Distance 600m
Consumption 10mA
Power Supply -
Dimensions 70 x 60 x 15mm
Weight 42g
Technical Information > Download the Handbook for full specifications and applications

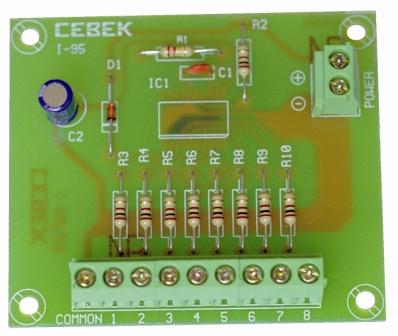

The Cebek I-95 module is a 4 - 8 channel multiplexed transmitter to control modules I-96 and I-97. By using two cables, you can connect emitter and receiver and then independently control up to 8 loads, with a maximum distance of 600m between transmitter and receiver. Communication is done by closing a push button or switch contacts (4 for the I-96 and 8 for the I-97), so controlling their corresponding load in the receiver module. As the power is supplied trough the communication cable, no additional power supply is necessary.

Related Products::
4-Channel Receiver I-96
8-Channel Receiver I-97


Order Code   Each
I-95 Cebek Multiplexed Transmitter supplied with either I-96 or I-97 -
