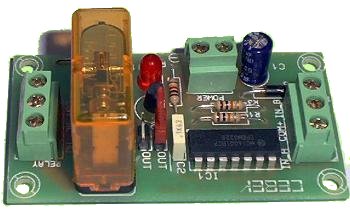

Cebek OR/NOR Gate with SPDT Relay



Cebek OR/NOR Gate with Relay Output

Specifications:
Reference I-76
Input 0 - 12VDC (TTL - CMOS)
Relay Output SPDT 5A
Consumption 55mA
Power Supply 12VDC
Dimensions 70 x 38 x 30mm.
Weight 50g
Technical Information > Download the Handbook for full specifications and applications
The Cebek I-76 module is a OR or NOR gate and replicates either of the two logical signals TTL and CMOS. The module will do the corresponding operation and the PCB mounted relay will be a logical 1. It is used to interface small logic signal levels with the real world.

Related Products::
Power Supply FE-2



Order Code   Each
I-76 Cebek OR/NOR Gate with SPDT Relay Output 8.41
