Cebek 4-Output Sequential Controller



Cebek 4-Output Sequential Controller

Specifications:
Reference I-5
Relay (4) 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 110 x 78 x 30mm
Weight 134g
Technical Information > Download the Handbook for full specifications and applications

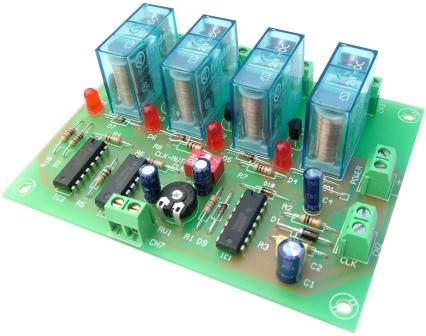

The Cebek I-5 is a 4 output sequential controller. The 4 relays will be operated one at a time and in a set sequence. They can be activated by a contact or run from the internal clock. The on board clock can be adjusted by the PCB mounted preset potentiometer between 0.3 and 10 seconds. The I-5 module includes the connection for a reset switch, which will return the controller to the first relay. Each relay has an LED to indicate the condition of the output.

Related Products::
Power Supply FE-103



Order Code   Each
I-5 Cebek 4-Output Sequential Controller 25.28
