Cebek Delayed Start Timer 2 - 45 minutes



Cebek Delayed Start Timer 2 - 45 minutes

Specifications:
Reference I-34
Range 2 - 45min
Relay Output 5A
Consumption 80mA
Power Supply 12VDC
Dimensions 76 x 44 x 30mm
Weight 58g
Technical Information > Download the Handbook for full specifications and applications

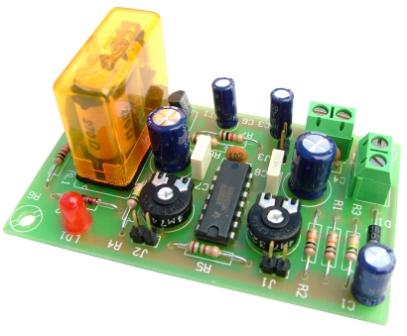

The Cebek I-34 module is a delayed start timer with relay output. The timer can be activated by the use a small push button switch. Once the timer has been started it will not switch the relay until a preset time¹ has elapsed, after this time the relay will operate and stay in this condition until the time² has elapsed. The I-34 module has two PCB mounted potentiometers to adjust the time settings. An LED gives visual indication of the condition of the relay.

Related Products::
Power Supply FE-103


Order Code   Each
I-34 Cebek Delayed Start Timer 2 - 45 minutes 11.65





sales@esr.co.uk

Tel: 0191 251 4363

Fax: 0191 252 2296




• Place your Order here • Orders accepted subject to our Terms and Conditions

All Prices are in Pounds Sterling and Exclude VAT
