Cebek Re-Start Timer 2 - 45 minutes


Cebek Re-Start Timer 2 - 45 minutes

Reference I-31
Range 2 - 45min
Relay Output 5A
Consumption 55mA
Power Supply 12VDC
Dimensions 76 x 43 x 30mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

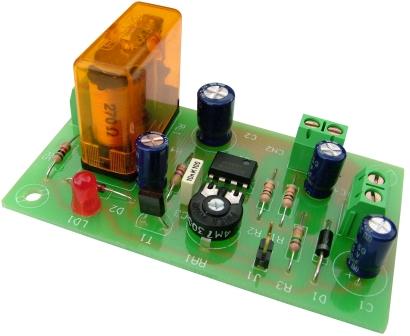

The Cebek I-31 module is a re-start timer with relay output. The timer can be activated by the use a small push button switch. Once the timer has been started it will switch off, after the time you have set has elapsed. lf the push button is operated before the timer has timed out, the time is re-set and it continues with the original value. An LED gives visual indication of the condition of the relay.
Related Products::
Power Supply FE-103
Order Code   Each
I-31 Cebek Re-Start Timer 2 - 45 minutes 11.01
