Cebek Sequential Timer 1 - 180 seconds



Cebek Sequential Timer 1 - 180 seconds

Specifications:
Reference I-27
Range 1 - 180sec
Relay Output 5A
Consumption 80mA
Power Supply 12VDC
Dimensions 107 x 65 x 30mm
Weight 86g
Technical Information > Download the Handbook for full specifications and applications
Watch a Movie Clip >

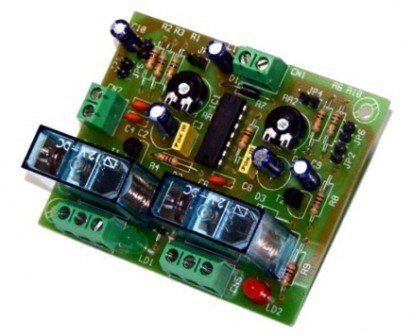

The Cebek I-27 module is a sequential timer which operated two separate relays. The timer can be activated by supplying power to the unit or there is provision to use a small push button. The timer¹ will switch the first relay after the elapsed time has been reached, the second timer² will also then be activated and it's relay will be switched once that time has expired. The Cebek I-27 module has inputs and outputs to allow other similar modules to be added, to increase the number of sequential switched relays. LED's give visual indication of the relay outputs.

Related Products::
Power Supply FE-103


Order Code   Each
I-27 Cebek Sequential Timer 1 - 180 seconds 16.56
