Cebek 2-Output Programmable Sequential Controller



Cebek 2-Output Programmable Sequential Controller

Specifications:
Reference I-210
Relay (2) 5A
Consumption 210mA
Power Supply 12VDC
Dimensions 142 x 95 x 50mm
Weight 250g
Technical Information > Download the Handbook for full specifications and applications

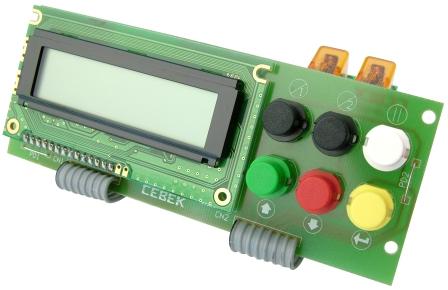

The Cebek I-210 is a 2 output programmable sequential controller. Each output will be able to control a program of up to 120 steps. Steps can be configured in three states: “connected output”, “disconnected output” and “output according to input level”. The step time will be adjustable between 0.5 second and 100 minutes. With the eight switches and LCD module you can select the required operating mode for the required output. It will maintain in memory stored programs even when the power supply fails. It has LED's to indicate the relays condition.

Related Products::
Power Supply FE-103



Order Code   Each
I-210 Cebek 2-Output Programmable Sequential Controller 62.00
