Cebek Cyclic Timer 20 - 150 minutes



Cebek Cyclic Timer 20 - 150 minutes

Specifications:
Reference I-12
Range 50sec - 30min
Relay Output 5A
Consumption 80mA
Power Supply 12VDC
Dimensions 76 x 44 x 30 mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

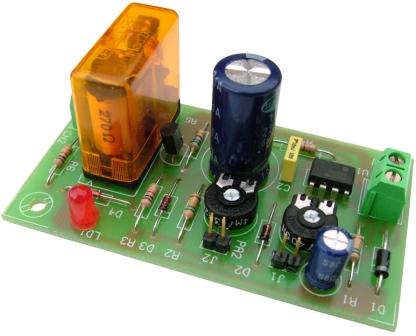

The Cebek I-12 is a cyclic timer module which has a relay output. The timer can be activated by supplying power to the unit or there is provision to use a small push button switch. Once the timer has been started it will switch off, after the time¹ you have set it will then switch back on after the time² has timed out. It will keep doing this until the power supply is switched off. The I-12 module has to PCB mounted potentiometers to adjust the on and off times. An LED gives visual indication of the relay.

Related Products::
Power Supply FE-103


Order Code   Each
I-12 Cebek Cyclic Timer 20 - 150 minutes 13.86
