Cebek Universal Timer 0.1 - 240 seconds



Cebek I-1 Universal Timer 0.1 - 240 seconds

Specifications:
Reference I-1
Range 0.1 - 240sec
Relay Output SPST 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 72 x 42 x 20mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

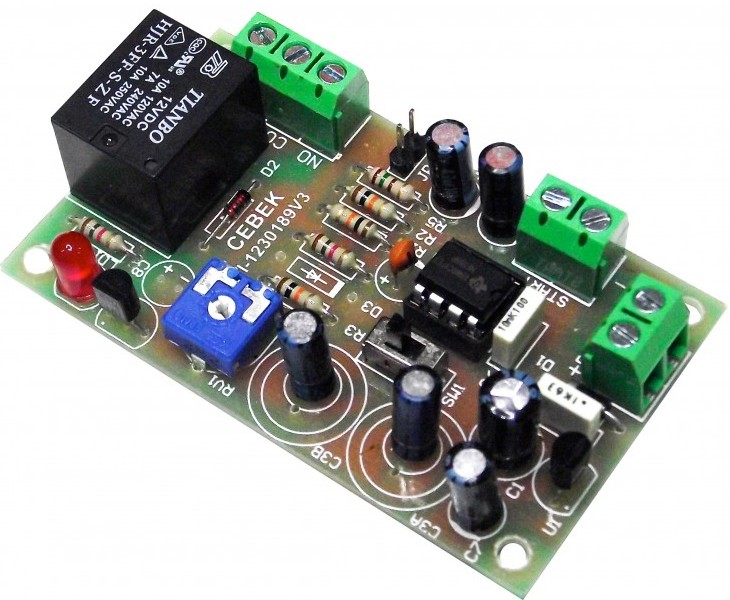

The Cebek I-1 timer module is fitted with SPST relay and has LED indication. The I-1 has two time setting scales A. 0.1 - 24 seconds and B.1 - 240 seconds a small PCB mounted slide switch selects between the two ranges and preset potentiometer gives the final time setting. The I-1 can be activated in two ways, with a button connected to the Start input, or by applying the supply voltage.

Related Products::
Power Supply FE-103



Order Code   Each
I-1 Cebek Universal Timer 0.1 - 240 seconds 11.77
