Cebek Symmetrical 12VDC Power Supply 500mA



Cebek Symmetrical 12VDC Power Supply 500mA

15 - 0 - 15v 30VA Transformer
Specifications:
Reference FE-9

Output ±12VDC@500mA
Ripple 10mV
Power Supply 230VAC
Dimensions
PCB 93 x 56 x 25mm
Transformer 87 x 43 x 52mm
Weight 618g
Technical Information > Download the Handbook for full specifications and applications

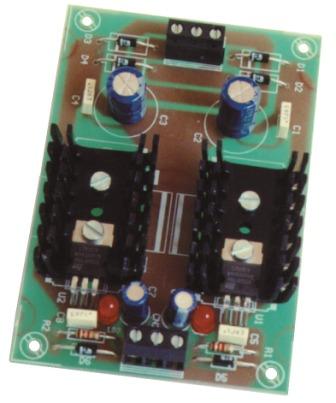

The Cebek FE-9 module is a dual rail 12VDC stabilized power supply. Offering one 12V+ positive rail and one 12V- negative rail. It can deliver a maximum of 500mA, they are fully regulated and short circuit protected. The FE-9 module includes connection terminals to facilitate assembly and LED'S to indicate its operating. The suitably rated transformer is also included in the price for this Cebek module.

Related Products::




Order Code   Each
FE-9

Cebek Symmetrical 12VDC Power Supply 500mA

16.81
