Cebek 3 - 15VDC Power Supply 2A



Cebek 3 - 15VDC Power Supply 2A

 0 - 15 - 18v 36VA Transformer
Specifications:
Reference FE-78

Output 3 - 15VDC@2A
Ripple 10mV
Power Supply 230VAC
Dimensions
PCB 110 x 80 x 45mm
Transformer 75 x 58 x 62mm
Weight 1201g
Technical Information > Download the Handbook for full specifications and applications

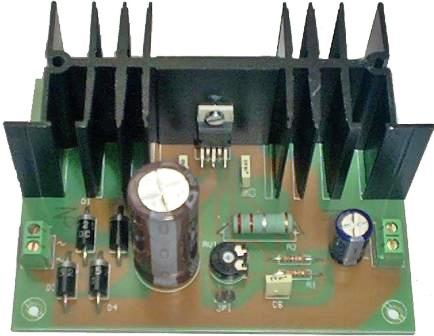

The Cebek FE-78 is a variable power supply with maximum output of 2A. The voltage can be adjusted by PCB mounted potentiometer between 3 - 15V, the output has short circuit protection. The suitably rated transformer is also included in the price for this Cebek module.

Related Products::




Order Code   Each
FE-78 Cebek 3 - 15VDC Power Supply 2A 32.66
