Cebek Symmetrical 15VDC Power Supply 1A



Cebek Symmetrical 15VDC Power Supply 1A

 18 - 0 - 18v 72VA Transformer
Specifications:
Reference FE-74

Output ±15VDC@1A
Ripple 10mV
Power Supply 230VAC
Dimensions
PCB 100 x 65 x 40mm
Transformer 75 x 65 x 65mm
Weight 1091g
Technical Information > Download the Handbook for full specifications and applications

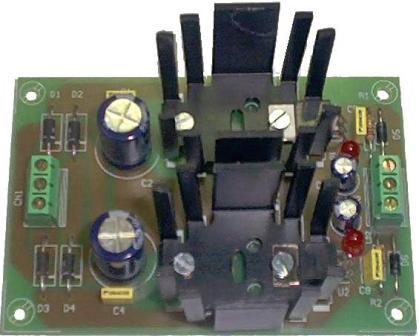

The Cebek FE-74 module is a dual rail 15VDC stabilized power supply. Offering one 15V+ positive rail and one 15V- negative rail. It can deliver a maximum of 1A, they are fully regulated and short circuit protected. The FE-74 module includes connection terminals to facilitate assembly and LED'S to indicate its operating. The suitably rated transformer is also included in the price for this Cebek module.


Related Products::



Order Code   Each
FE-74 Cebek Symmetrical 15VDC Power Supply 1A 22.37
