Cebek Symmetrical 12VDC Power Supply 600mA



Cebek Symmetrical 12VDC Power Supply 600mA

Specifications:
Reference FE-170

Output 12VDC@600mA
Ripple 5mV
Power Supply 230VAC
Dimensions 110 x 90 x 30mm
Weight 479g
Technical Information > Download the Handbook for full specifications and applications

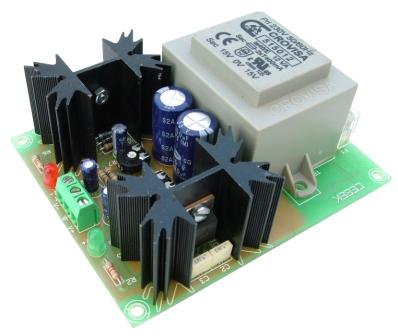

The Cebek FE-170 module is a dual rail 12VDC stabilized power supply. Offering one 12V+ positive rail and one 12V- negative rail. It can deliver a maximum of 600mA, they are fully regulated and short circuit protected. Two PCB mounted pre-set potentiometers are supplied to adjust the output voltages between 10 and 15VDC. The FE-170 module has a small enclosed transformer mounted on the circuit board. and LED to indicate its operating.

Related Products::




Order Code   Each
FE-170 Cebek Symmetrical 12VDC Power Supply 600mA 22.04
