Cebek 24V Power Supply 5A



Cebek 24V Power Supply 5A

Specifications:
Reference FE-15

Output 24VDC@5A
Ripple 7mV
Power Supply 230VAC
Dimensions
PCB 110 x 80 x 55mm
Transformer
Weight 210g
Technical Information > Download the Handbook for full specifications and applications

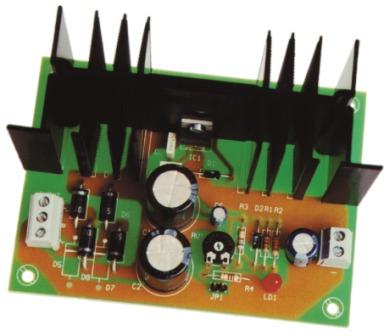

The Cebek FE-15 module is a single rail 24VDC stabilized power supply. It can deliver a maximum of 5A, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage (19 - 30VDC), to allow for long cable runs and supply voltage variations. The FE-15 module includes connection terminals to facilitate assembly and LED to indicate its operating. The transformer is also supplied and included with this module.

Related Products::




Order Code   Each
FE-15 Cebek 24V Power Supply 5A 44.04
