Cebek 5VDC Power Supply 2A



Cebek 5VDC Power Supply 2A

Specifications:
Reference FE-10

Output 5VDC@2A
Ripple 7mV
Power Supply 230VAC
Dimensions
PCB 100 x 66 x 40mm
Transformer 94 x 55 x 57mm
Weight 939g
Technical Information > Download the Handbook for full specifications and applications

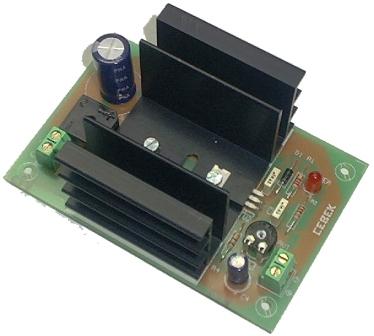

The Cebek FE-10 module is a single rail 5VDC stabilized power supply. It can deliver a maximum of 2A, the output is fully regulated and short circuit protected. A PCB mounted pre-set potentiometer is supplied to adjust the output voltage, to allow for long cable runs and supply voltage variations. The FE-10 module includes connection terminals to facilitate assembly and LED to indicate its operating. The 0 - 9v -12v 2A transformer is also supplied with this module.

Related Products::




Order Code   Each
FE-10 Cebek 5VDC Power Supply 2A 17.65
