Cebek 15W Stereo Amplifier



Cebek 15W Stereo Amplifier

Specifications:
Reference ES-4
Rated Power (RMS) 15W
Frequency Range 20 - 18000Hz
THD 1%
Input 300 - 1000mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 1A
Power Supply 12 - 35VDC
Dimensions 110 x 85 x 40mm
Weight 164g
Technical Information > Download the Handbook for full specifications and applications

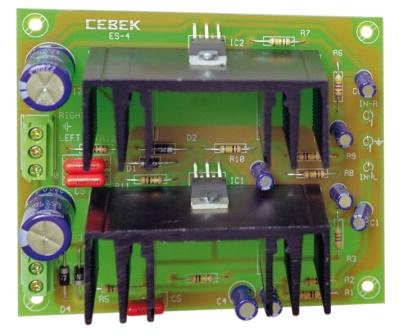

Cebek ES-4 module is a stereo power stage with 15 W. RMS at 4W as maximum power per channel. It could be connected to a mixer's output, auxiliary inputs, pre-amplifier. It includes connection terminals, protection against polarity inversion as well as protection against short-circuits at outputs

Related Products::
Power Supply FE-7



Order Code   Each
ES-4 Cebek 15W Stereo Amplifier 27.33
