Cebek 0.5W Stereo Amplifier


Cebek 0.5W Stereo Amplifier
Specifications:
Reference ES-3
Rated Power (RMS) 0.5W
Frequency Range 30 - 18000Hz
THD %
Input 50 -1000mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 50mA
Power Supply 12VDC
Dimensions 54 x 40 x 20mm
Weight 34g
Technical Information > Download the Handbook for full specifications and applications

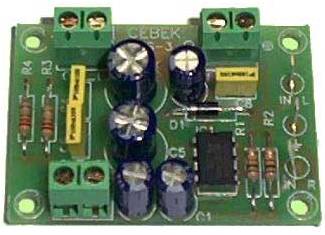

Cebek ES-3 module is a 2 x 0.5W Stereo power stage specially indicated for small applications. The ES-3 module offers a maximal power of 0.5W RMS at 4 Ohms. Its main characteristic is the numerous applications where it could be used thanks to its small size and high quality. It includes a protection against short-circuits and polarity reversal.

Related Products::
Power Supply FE-4



Order Code   Each
ES-3 Cebek 0.5W Stereo Amplifier 8.12
