  Cebek Electronic Kits

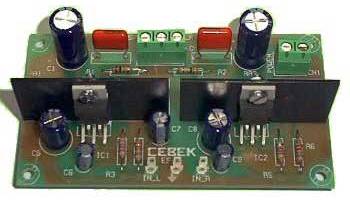

Cebek 5W Stereo Amplifier



Cebek 5W Stereo Amplifier

Specifications:
Reference ES-2
Rated Power (RMS) 5W
Frequency Range 30 - 18000Hz
THD 1.0 %
Input 1000mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 500mA
Power Supply 6 - 15VDC
Dimensions 90 x 55 x 27mm
Weight 70g
Technical Information > Download the Handbook for full specifications and applications
Cebek The ES-2 module is a stereo power stage with 5W RMS at 4 Ohms as maximum power per channel. It could be connected to a mixer's output, auxiliary inputs, pre-amplifier etc. It includes protection against short-circuits, polarity inversion and connection terminals.

Related Products::
Power Supply FE-4



Order Code   Each
ES-2 Cebek 5W Stereo Amplifier 16.85
