Cebek 1.8W Stereo Amplifier



Cebek 1.8W Stereo Amplifier

Specifications:
Reference ES-1
Rated Power (RMS) 1.8W
Frequency Range 30 - 18000Hz
THD 0.4 %
Input 50 - 1000mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 250mA
Power Supply 4 - 14VDC
Dimensions 70 x 50 x 20mm
Weight 40g
Technical Information > Download the Handbook for full specifications and applications

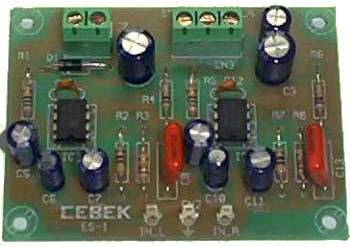

Cebek ES-1 module is a stereo power stage, with a maximum power of 1.8 W per channel RMS. at 4 ohms. It can be connected to the output of a mixer, or auxiliary inputs, pre-amplifiers It includes protection against short-circuits, polarity inversion and connection terminals.

Related Products::
Power Supply FE-2



Order Code   Each
ES-1 Cebek 1.8W Stereo Amplifier 9.35
