Cebek 15W Mono Amplifier



Cebek 15W Mono Amplifier

Specifications:
ReferenceE-4
Rated Power (RMS)15W
Frequency Range30 - 18000Hz
THD2.0 %
Input300 - 1500mV@100kΩ
Output Impedance4 - 8Ω
Consumption500mA
Power Supply12 - 35VDC
Dimensions80 x 65 x 45mm
Weight40g
Technical Information >Download the Handbook for full specifications and applications

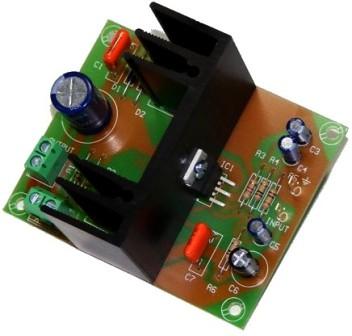

Cebek E-4 module is a mono power amplifier stage with 15W RMS output at 4Ω. It could be connected to a mixer's output, auxiliary inputs or from a pre-amplifier. It includes connection terminals, protection against polarity inversion as well as protection against short-circuits at outputs.

Related Products::
Power SupplyFE-7



Order Code Each
E-4Cebek 15W Mono Amplifier13.76
