Cebek 5W Mono Amplifier



Cebek 5W Mono Amplifier

Specifications:
Reference E-2
Rated Power (RMS) 5W
Frequency Range 30 - 18000Hz
THD 1.0 %
Input 100 - 1000mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 500mA
Power Supply 6 - 15VDC
Dimensions 50 x 40 x 20mm
Weight 42g
Technical Information > Download the Handbook for full specifications and applications

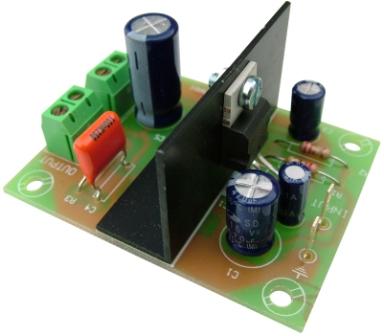

Cebek E-2 module is a mono power amplifier stage with 5W RMS output at 4Ω per channel. It could be connected to a mixer's output, auxiliary inputs or from a pre-amplifier. It includes connection terminals, protection against polarity inversion as well as protection against short-circuits at outputs.

Related Products::
Power Supply FE-2



Order Code   Each
E-2 Cebek 5W Mono Amplifier 8.57
