Cebek 5W Amplifier with Pre-Amp


Cebek 5W Amplifier with Pre-Amp
Specifications:
Reference E-16
Rated Power (RMS) 5W
Frequency Range 30 - 18000Hz
THD 0.01 %
Input (Pre-Amp) 5 - 300mV@10kΩ
Input (Power Amp) 50 - 700mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 210mA
Power Supply 6- 12VDC
Dimensions 90 x 49 x 30mm
Weight 60g
Technical Information > Download the Handbook for full specifications and applications

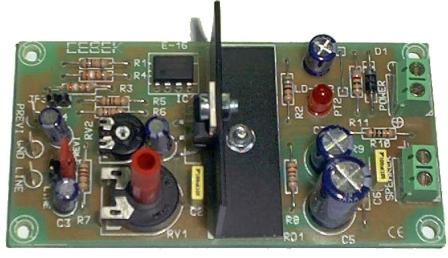

Cebek E-16 is a mono power stage with pre-amplifier incorporated. The E-16 module offers a maximal power of 5 W RMS at 4 ohms. Its main characteristic is the double input, input for pre-amp or input for line level signal, offering it the possibility to amplify almost all kinds of signal. It includes: Gain adjustment, volume control and connection terminals.

Related Products::
Power Supply FE-2



Order Code   Each
E-16 Cebek 5W Amplifier with Pre-Amp 14.81
