Cebek 1.8W Amplifier with Pre-Amp



Cebek 1.8W Amplifier with Pre-Amp

Specifications:
ReferenceE-15
Rated Power (RMS)1.8W
Frequency Range30 - 18000Hz
THD0.01 %
Input (Pre-Amp)5 - 300mV@10kΩ
Input (Power Amp)50 - 700mV@100kΩ
Output Impedance4 - 8Ω
Consumption24mA
Power Supply6- 12VDC
Dimensions76 x 43 x 25mm
Weight40g
Technical Information >Download the Handbook for full specifications and applications

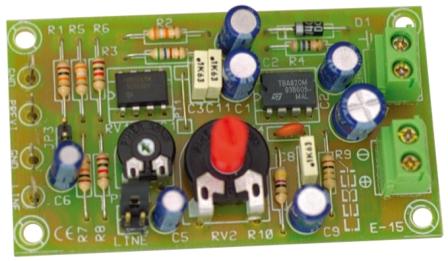

Cebek E-15 is a mono power stage with pre-amplifier incorporated. The E-15 module offers a maximal power of 0.5 W RMS at 4 ohms. Its main characteristic is the double input, input for pre-amp or input for line level signal, offering it the possibility to amplify almost all kinds of signal. It includes: Gain adjustment, volume control and connection terminals.

Related Products::
Power SupplyFE-2



Order Code Each
E-15Cebek 1.8W Amplifier with Pre-Amp9.48
