Cebek 1.8W Mono Amplifier


Cebek 1.8W Mono Amplifier
Specifications:
Reference E-1
Rated Power (RMS) 1.8W
Frequency Range 30 - 18000Hz
THD 0.4 %
Input 700mV@100kΩ
Output Impedance 4 - 8Ω
Consumption 150mA
Power Supply 4 - 14VDC
Dimensions 50 x 35 x 20mm
Weight 30g
Technical Information > Download the Handbook for full specifications and applications

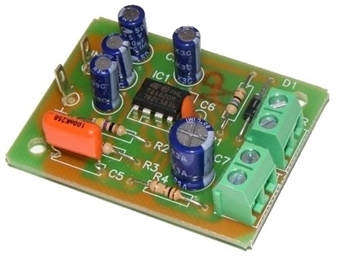

Cebek E-1 Mono power stage specially suited for small appliances. The maximum power is 1.8 W. RMS at 4 Ohms. Its main characteristic is based on the high quantity of appliance thanks to its reduce size and its quality. It includes protection against short-circuits, polarity inversion and connection terminals.

Related Products::
Power Supply FE-2



Order Code   Each
E-1 Cebek 1.8W Mono Amplifier 7.11
