Cebek Intelligent Door Bell



Cebek Intelligent Door Bell

Specifications:
Reference DA-04

Relay Output 5A
Consumption 70mA
Power Supply 12VDC
Dimensions (Module) 110 x 65 x 30mm.
Weight 90g
Technical Information > Download the Handbook for full specifications and applications

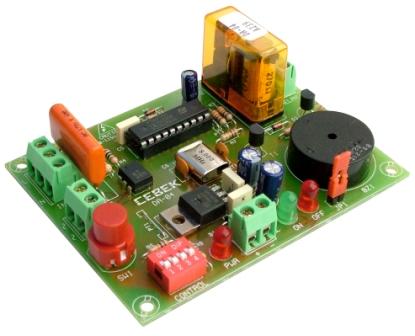

The Cebek DA-04 module is a intelligent circuit, that when connected to the bell push of a front door it is able to memorise a melody played on it and to record it. Once this operation done, the module will only allow the door to open when the person who press the bell plays the exact melody previously recorded. Otherwise, the bell will act and ring as a normal bell. The output time is adjustable between 1 and 4 sec. It includes an auto-blocking against failed access attempts, outputs to open door, push button for the ring and LED's.

Related Products::
Power Supply FE-103


Order Code   Each
DA-04 Cebek Intelligent Door Bell 22.79
