  Cebek Electronic Kits

Cebek Keypad Access Control



Cebek Keypad Access Control

Specifications:
Reference DA-03

Relay Output 5A
Consumption 100mA
Power Supply 12VDC
Dimensions (Module) 80 x 60 x 40mm.
Weight 126g
Technical Information > Download the Handbook for full specifications and applications

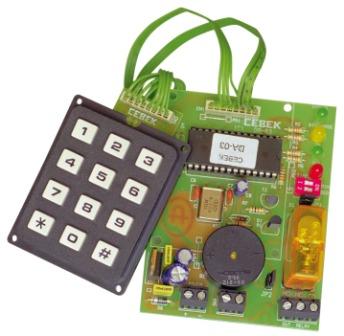

The Cebek D-03 module is an electronic lock controlled by a keypad. You can insert up to 10 different codes (composed by 4 numbers in each code) which will be stored in the memory even if you loose the power supply to the module. It allows you to authorize and deny codes and has a relay output. The output could be set as momentary or timed output. The time can be adjusted between 1 and 60 sec or 1 and 60 minutes. It includes signal LED's, audible warning, keyboard and connection terminals.

Related Products::
Power Supply FE-103
Optional Metal Keypad C-5236


Order Code   Each
DA-03 Cebek Keypad Access Control 38.62
