Cebek 2-Digit Standard Counter



Cebek 2-Digit Standard Counter

Specifications:
Reference CD-9
LED Display 2-Digit 13.5mm
Range 0 - 99
Consumption 90mA
Power Supply 12VDC
Dimensions 58 x 58 x50mm
Weight 58g
Technical Information > Download the Handbook for full specifications and applications

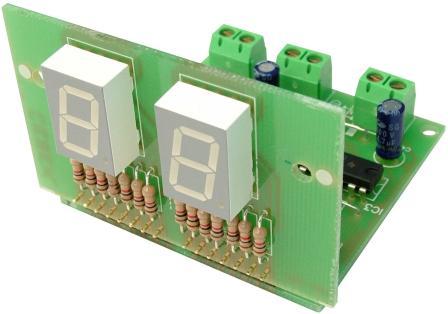

The Cebek CD-9 module is a 2-digit standard counter. It counts up from 0 to 99 when it receives impulses from a closing contact on the signal input like a push button or switch or injecting an external signal (12VDC). The module also has a reset signal input, which allows you to reset the count.

Related Products::
Power Supply FE-103



Order Code   Each
CD-9 Cebek 2-Digit Standard Counter 10.58
