Cebek Industrial Counter with Relay Output

CD-45 Industrial Counter
Specifications:
Reference CD-45
Range 1 -999
Relay SPDT 5A
Consumption 60mA
Power Supply 12VDC
Dimensions 92 x 59 x 30mm
Weight 752
Technical Information > Download the Handbook for full specifications and applications

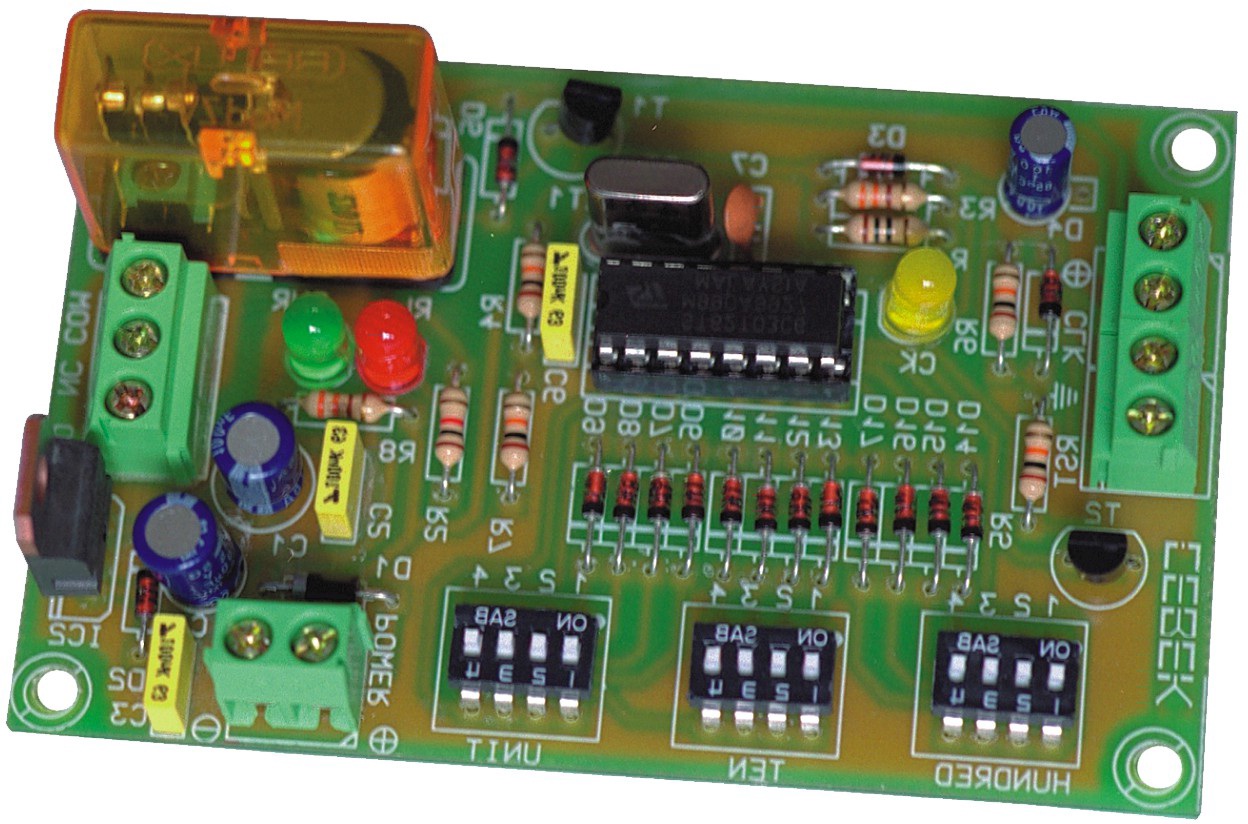

The Cebek CD-45 module is a hole number counter. With the use of PCB DIL switches a number between 1 and 999 can be selected when the input pulse count reaches the selected number the relay will energise. The relay will stay energised until the unit is reset. The CD-45 does not have a visual display of the count. Input pulses are indicated through a LED.

Related Products::
Power Supply FE-103



Order Code   Each
CD-45 Cebek Industrial Counter Counter with Relay Output 22.80
