Cebek 4-Digit Up/Down Counter with Memory



Cebek 4-Digit Up/Down Counter with Memory

Specifications:
Reference CD-43
LED Display 4-Digit 13.5mm
Range 0 - 9999
Consumption 110mA
Power Supply 12VDC
Dimensions 86 x 65 x 52mm
Weight 94g
Technical Information > Download the Handbook for full specifications and applications

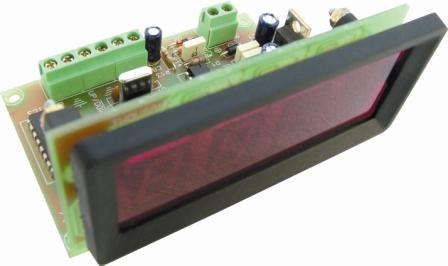

The Cebek CD-43 module is a 4-digit up/down counter, with last count memory. It can count up from 0 to 9999 when it receives pulses from a closing contact like a push button or switch or by injecting an external signal (12VDC). It includes a memory function which allow it to store on an internal E2prom the last data when the module is switched off. Displaying again when the unit is switched back on. The module also has the facility, by throwing a switch, to count down from the displayed count. The module also has a reset signal input, which allows you to reset the count at any time.

Related Products::
Power Supply FE-103



Order Code   Each
CD-43 Cebek 4-Digit Up/Down Counter with Memory 29.67
