Cebek Motorbike Alarm


Cebek Motorbike Alarm

Specifications:
Reference AL-9



Alarm ON Time 29sec
Relay Output 12V@5A
Consumption (Max) 58mA
Power Supply 13.8VDC
Dimensions 67 x 40 x 30mm
Weight 52g
Technical Information > Download the Handbook for full specifications and applications

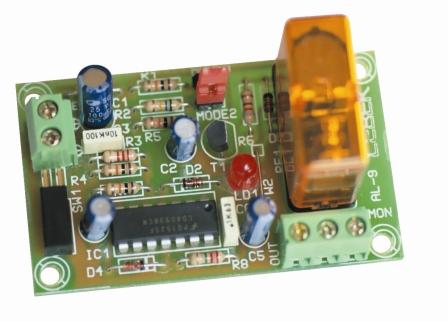

Cebek AL-9 module is an alarm specially design for use in a motorbike. When the PCB mounted sensor of the module detects a movement, the output is automatically activated for 29 seconds. After this time the output is deactivated and the circuit will remain in quiescent mode until the sensor detects another movement. To stop the alarm once activated you have to disconnect the module from the supply. It has a relay output allowing you to connect a klaxon or siren, this can be continuous or intermittent in operation.

Related Products::
Suitable Sounders Siren



Order Code   Each
AL-9 Cebek Motorbike Alarm 8.86
