Velleman 4 Channel relay module for a Microbit® Velleman Kits

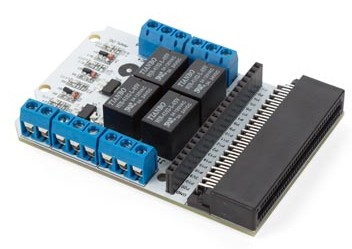

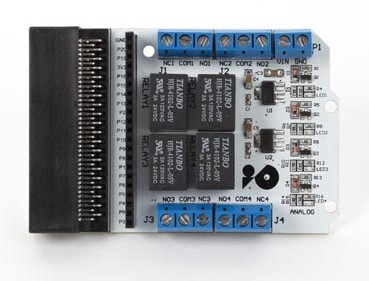

4 Channel relay module for a Microbit

Velleman 4 Channel relay module for a Microbit

Specification Features:
  • Control input current (P3, P4, P6, P7): max. 5 mA
  • Control input voltage: 3.3 - 5 Vdc
  • Relay output: 24 Vdc 3 A (non-inductive)
  • Operating voltage: 5 Vdc
  • Contacts: NO / NC
  • BBC Microbit® interface connector
  • LED indicator for relay output status
  • 3.3 V regulator on board





Read the fully Illustrated Assembly Manual for WPM401

 PDF Download


Dimensions (PCB)

57 x 80mm

Weight

g

This 4-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by a MICROBIT®.
Order Code   Each
WPM401 Whadda 4 Channel relay module for a Microbit® 13.34
