Velleman VM436 8-Channel Relay Module

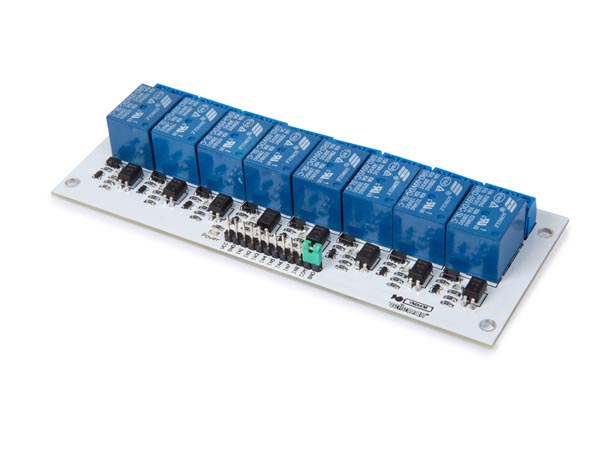

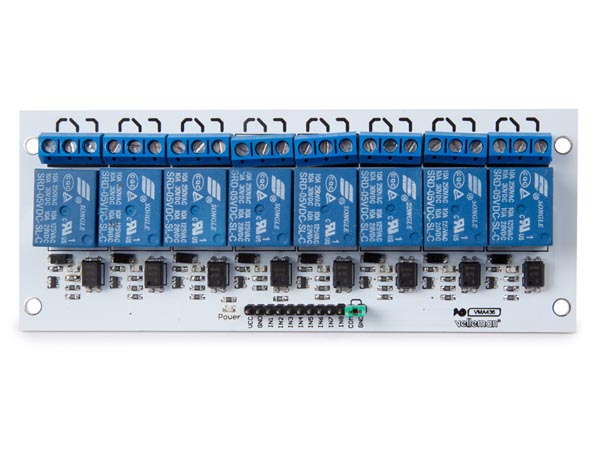

VM436 Relay Board

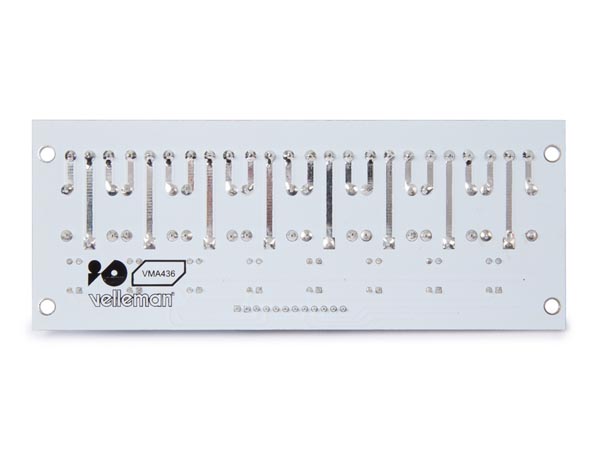

8-Channel Relay Module (Rear)

Specification Features:
  • standard interface that can be controlled directly by any microcontroller
  • opto-isolated inputs
  • indicator LED's for relay output status
  • operating voltage 5Vdc
  • control input current (in1 to in4): 15 - 20mA
  • control input voltage: 5 - 12VDC
  • relay output: 250 VAC 10 A; 30VDC 10 A (non-inductive)

Read the fully Illustrated Assembly Manual for WPM436

 PDF Download


Dimensions (PCB)

57 x 138mm

Weight

g

This 8-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by any micro-controller.
Order Code   Each
WPM436 Whadda 8-Channel Relay Module 11.47
