Velleman GPS U-BLOX NEO-7M Module

GPS Module U-BLOX NEO-7M Module

Velleman GPS Module

Specification Features:

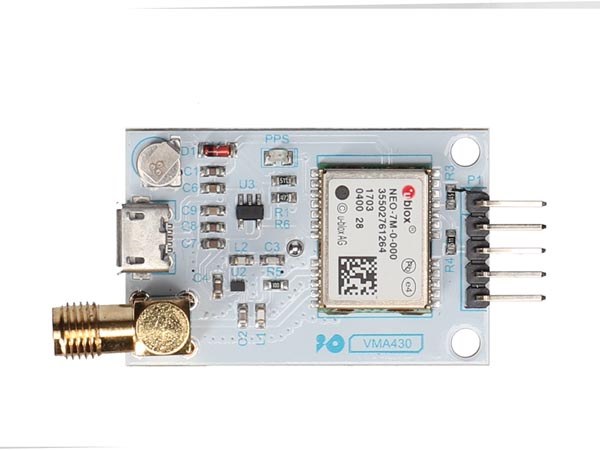

  • U-BLOX NEO-7M module, compact and excellent performance
  • parameters can be set via serial port and saved in EEPROM

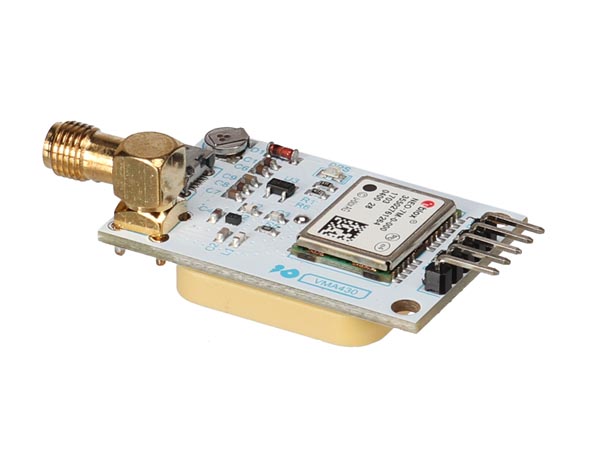

  • with SMA interface, you can connect a variety of antenna, strong adaptability
  • compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems
  • back-up rechargeable battery on board
  • with micro USB, no need for USB-TTL tools
  • with TTL interface

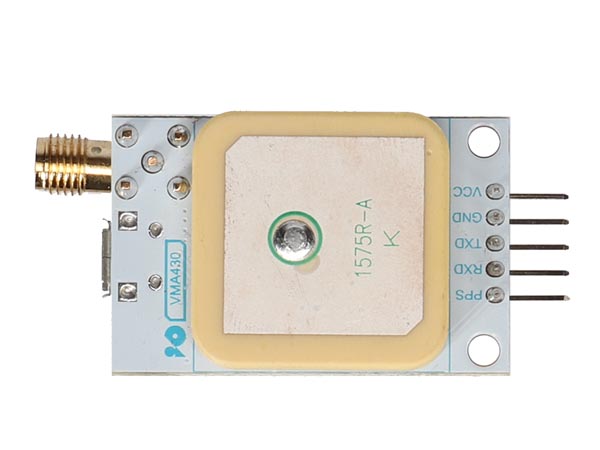

  • onboard ceramic antenna
  • sample code: https://playground.arduino.cc/UBlox/GPS
  • evaluation software (U-Center) available for download
  • supply voltage: 3.3 to 5 VDC (or by USB cable)
  • connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)
  • default baud rate: 9600 baud

Read the fully Illustrated Assembly Manual for VMA430

 PDF Download


Dimensions (PCB)

54 x 25 x 15mm

Weight

15g

The NEO-7 series of standalone GNSS modules is built on the exceptional performance of the u-blox 7 GNSS (GPS, GLONASS, QZSS and SBAS) engine. The NEO-7 series delivers high sensitivity and minimal acquisition times in the industry proven NEO form factor.
Order Code   Each
VMA430 Velleman GPS Module U-BLOX NEO-7M 22.40
