Velleman Dual 2 Amp Stepper Motor ControllerVelleman Kits

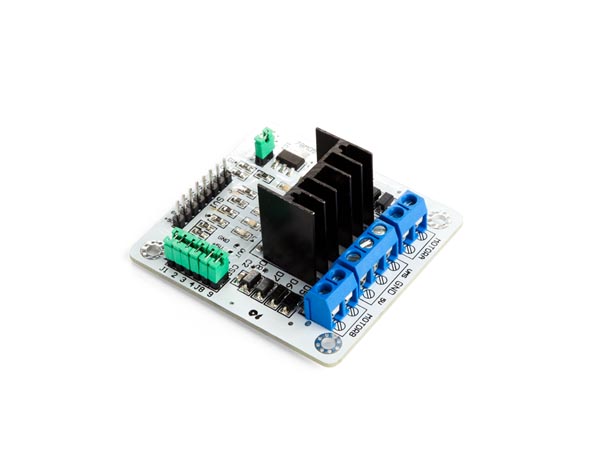

Velleman Dual 2 Amp Stepper Motor Controller

Specification Features:

  • driver: L298N
  • driver power supply: + 5 V to + 35 V
  • driver output current (max.): 2A
  • logic power output Vss: +5 V to +7 V (internal supply +5 V)
  • logic current: 0-36mA
  • controlling level: low -0.3 V to 1.5 V, high: 2.3V-Vss
  • enable signal level: low -0.3 V to 1.5 V, high: 2.3V-Vss
  • max. power: 25 W
  • working temperature: -25C to +130 C

Read the fully Illustrated Assembly Manual for VMA409

PDF Download


Dimensions (PCB)

69 x 56 x 36mm

Weight

g


 This module allows full control of two DC motors or one stepper motor.
Order Code Each
VMA409Velleman Dual 2 Amp Stepper Motor Controller7.16
