Velleman RFID Read/Write Module Velleman Kits

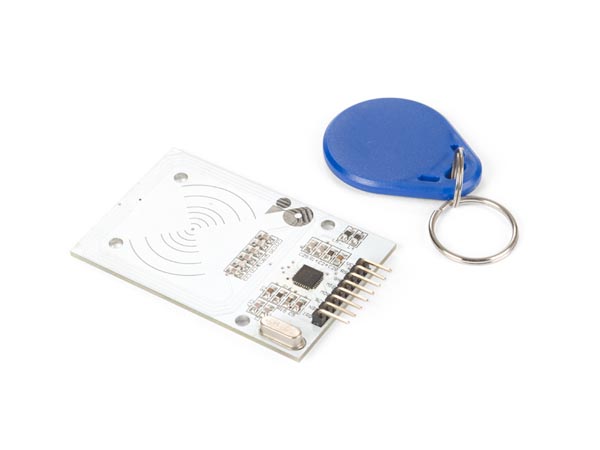

Velleman RFID Read/Write Module

Specification Features:
  • operating voltage: 3.3 VDC
  • working current: 13 to 26 mA
  • sleep current: < 80 uA
  • peak current: < 30 mA
  • working frequency: 13.56 MHz
  • supported card types: Mifare cards
  • interface / protocol: SPI
  • controller chip: MFRC522
  • data transmission speed: Max. 10 Mbit / s
  • includes: 2 tags (1 card , 1 fob)

Read the fully Illustrated Assembly Manual for WPI405

 PDF Download


Dimensions (PCB)

66 x 40 x 7mm

Weight

g

This RFID module allows to both read and write MiFare-type RFID cards. Additional Tags and Cards are available VMA417  (Cards) and VMA418 (Tags)
Order Code   Each
WPI405 Whadda RFID Read/Write Module (Supplied with Two Tags) 7.50
