Velleman BME280 Temperature, Humidity, Pressure SensorVelleman Kits

Velleman BME280 Temperature, Humidity, Pressure Sensor

Specification Features:

  • measurement of volume and air flow
  • home automation control
  • control heating, ventilation, air conditioning
  • internet of things
  • weather forecast
  • pressure range: 300 to 1100 hPa
  • temperature range: -40 to 85C
  • supply voltage: 1.2 to 3.6 V
  • I/O voltage: max 3.6 V
  • current consumption: max. 3.6 uA @ 1 Hz (H,P,T)
  • sleep mode consumption: 0.1 uA
  • interface: I2C and SPI

Read the fully Illustrated Assembly Manual for VMA335

PDF Download


Dimensions

15 x 12mm

Weight

6g

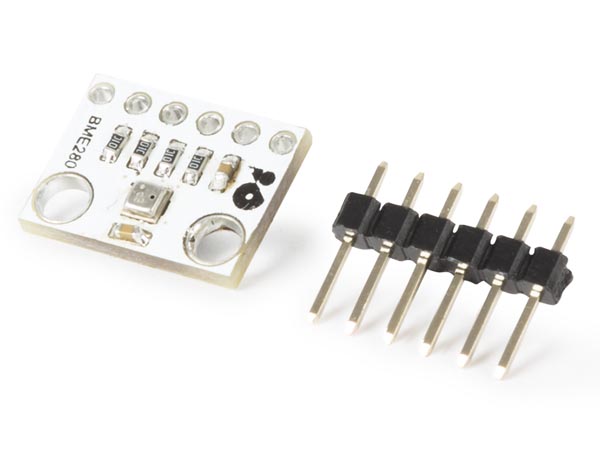

The BME280 used on the VMA335 module is an integrated environmental sensor developed specifically for mobile applications where size and low power consumption are key design constraints. The BME280 / VMA335 supports either SPI or I2C interface to communicate with the microcontroller.
Order Code Each
VMA335BME280 Temperature, Humidity, Pressure Sensor6.59
